The SPFX offers a short-haul option to extend your network to 2 km.
SPFX/15
100FX (LC) single-mode SFP, 15 km
The SPFX offers a short-haul option to extend your network to 15 km The AT-SP series SFPs are compatible with a limited number of SFP compatible products.Call or check with your Allied Telesis sales rep for details.
SPFXBD-LC
100FX (LC) single-mode BiDi, 15km
The SPFXBD-LC is available in 1310Tx/1550Rx or 1550Tx/1310Rx models. It offers the latest industry standard in flexible, full-duplex Fast Ethernet connectivity. These hot-swappable fiber interfaces simply plug into a SFP slot on compatible products. You can optimize the configuration to meet your distance and service requirements.
SPTX/100MB-00
10/100TX (RJ45), SFP, 100m
The Allied Telesis SPTX offers a copper option to extend your network (up to 100 meters).
SP10T
100/1000/10G-T (RJ-45) SFP+, 20m/100m
100/1000/10G-T (RJ-45), 20m/100m*
* Supports links up to 20m using Cat 6a/7 Cable for 10G and up to 100m for 100/1000T
1G Transceiver Modules
SPZX120/I
1000ZX (LC) single-mode SFP, 120km
The SPZX120/I offers a long-haul option to extend your network up to 120km.
SPSX
1000SX (LC) multi-mode SFP, 550m
The SPSX offers a short-haul option to extend your network to 550 m.
SPSX/I
1000SX (LC) multi-mode SFP, I-Temp, 550m
The SPSX/I offers a short-haul option to extend your network to 550 m.
SPSX/E
1000SX (LC) multi-mode SFP, Ext-Temp, 550m
The SPSX/E offers a short-haul option to extend your network to 220-550 m.
SPEX
1000LX (LC) multi-mode SFP, 2km
The SPEX offers a 2 km over multi-mode fiber (1310 nm) option to extend your network. The SPEX is compatible with all the Allied Telesis range of products which have an SFP port.
SPEX/E
1000LX (LC) multi-mode SFP, Ext-Temp, 2km
TThe SPEX/E offers a 2 km over multi-mode fiber (1310 nm) option to extend your network. The SPEX is compatible with all the Allied Telesis range of products which have an SFP port.
SPLX10
1000LX (LC) single-mode, 10km
The SPLX10 offers a long-haul option to extend your network up to 10km.
SPLX10/Iᅠ
1000LX (LC) single-mode SFP, I-Temp, 10km
1000LX SFP, LC, SMF, 1310 nm, (10 km), I-Temp
SP10T
100/1000/10G-T (RJ-45) SFP+, 20m/100m
100/1000/10G-T (RJ-45), 20m/100m*
* Supports links up to 20m using Cat 6a/7 Cable for 10G and up to 100m for 100/1000T
SPLX10/E
1000LX (LC) single-mode SFP, Ext-Temp, 10km
The SPLX10/E offers a long-haul option to extend your network up to 10 km.
SPLX40
1000EX (LC) single-mode, 40km
The SPLX40 offers a long-haul option to extend your network up to 40km.
SPLX40/E
1000EX (LC) single-mode SFP, Ext-Temp, 40km
The SPLX40/E offers a long-haul option to extend your network up to 40 km
SPZX80
1000ZX (LC) single-mode SFP, 80km
The SPZX80 offers a long-haul option to extend your network up to 80 km.
SPBD10
1000LX (LC) single-mode BiDi SFP, 10 km
The SPBD10 is available in 1310Tx/1490Rx or 1490Rx/1310Tx models. It offers the latest industry standard in flexible, full-duplex Gigabit Ethernet connectivity. These hot-swappable fiber interfaces simply plug into a SFP slot on compatible products. You can optimize the configuration to meet your distance and service requirements.

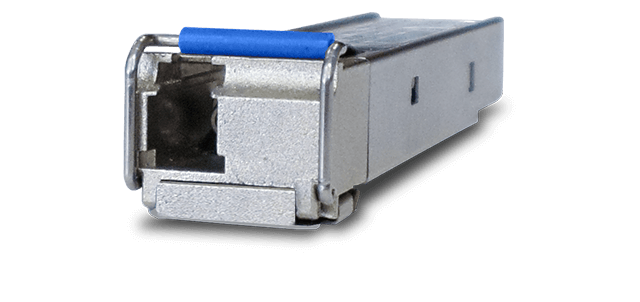

SPBD20LC/I
1000LX (LC) single-mode BiDi SFP, I-Temp, 20km
The SPBD20LC/I is available in 1310Tx/1490Rx or 1490Tx/1310Rx I-Temp models (-40°C to 85°C). It offers the latest industry standard in flexible, full-duplex Gigabit Ethernet connectivity. These hot-swappable fiber interfaces simply plug into a SFP slot on compatible products. You can optimize the configuration to meet your distance and service requirements.
SPBD20-xx/I
1000LX (SC) Single-Mode BiDi SFP, I-Temp, 20 km
The SPBD20-xx/I is available in 1310Tx/1490Rx or 1490Tx/1310Rx I-Temp models (-40°C to 85°C) with an SC connector. It offers the latest industry standard in flexible, full-duplex Gigabit Ethernet connectivity. These hot-swappable fiber interfaces simply plug into a SFP slot on compatible products. You can optimize the configuration to meet your distance and service requirements.
SPBD40-xx/I
1000LX (LC) single-mode BiDi SFP, I-Temp, 40km
The SPBD40-xx/I is available in 1310Tx/1490Rx or 1490Tx/1310Rx I-Temp models (-40°C to 85°C). It offers the latest industry standard in flexible, full-duplex Gigabit Ethernet connectivity. These hot-swappable fiber interfaces simply plug into a SFP slot on compatible products. You can optimize the configuration to meet your distance and service requirements.
The SPBD20DUAL is a hot-swappable, 2 channel bi-directional transceiver module offering connectivity in a flexible, small form-factor. It is compliant with the latest Gigabit Ethernet standards, as well as the CSFP Multisource Agreement (MSA).
The SPBD40DUAL is a hot-swappable, 2 channel bi-directional transceiver module offering connectivity in a flexible, small form-factor. It is compliant with the latest Gigabit Ethernet standards, as well as the CSFP Multisource Agreement (MSA).SPBD40DUAL-14
The SPBD20-14-EXT offers the latest industry standard in flexible, full-duplex Gigabit Ethernet connectivity. These hot-swappable, fiber interfaces simply plug into a SFP slot on Allied Telesis SFP-compatible intelligent Multiservice Gateways (iMGs).
SPTX
10/100/1000T (RJ-45) SFP, 100 m
The Allied Telesis SPTX offers a copper option to extend your network (up to 100 meters).
SPTX/I
10/100/1000T (RJ-45) SFP, I-Temp, 100m
10/100/1000T (RJ-45) SFP, I-Temp, 100m. The Allied Telesis SPTX/I offers a copper option to extend your network (up to 100 meters) in industrial environments.
10G Transceiver Modules
SP10SR
10G SR (LC) multi-mode SFP+, 300m
The Allied Telesis SP10SR is a hot pluggable 10Gbps small form factor transceiver module. It is compliant with the SFF-8431 SFP+ Electrical Multi-source Agreement (MSA) with five digital monitoring functions: Temperature, Vcc, Tx optical power, Tx laser bias current and Rx received optical power.
SP10SR/I
10G SR (LC) multi-mode SFP+, Ext-Temp, 300m
10Gbps SR, SFP+, 300m, Ext-Temp
SP10LRM
10G LR (LC) multi-mode SFP+, 220m
The Allied Telesis SP10LRM is a hot-pluggable 10Gbps small form factor transceiver module. It is compliant with the SFF-8431 SFP+ Electrical Multi-source Agreement (MSA) and features five digital monitoring functions: temperature, VCC, transmitted optical power, transmitted laser bias current and received optical power.
SP10LR
10G LR (LC) single-mode, 10km
The SP10LR is a hot pluggable 10Gbps small form factor transceiver module. It is compliant with the SFF-8431 SFP+ Electrical Multi-source Agreement (MSA) with five digital monitoring functions: Temperature, Vcc, Tx optical power, Tx laser bias current and Rx received optical power.
SP10LR/I
10G LR (LC) single-mode SFP+, Ext-Temp, 10km
10Gbps LR, SFP+, 10km , I-Temp
SP10ER40/I
10G (LC) single-mode, I-Temp, 40km
The Allied Telesis SP10ER40/I is a hot-pluggable 10Gbps small form factor transceiver module.
SP10ZR80/I
10G ZR (LC) single-mode SFP+, Ext-Temp, 80km
The Allied Telesis SP10ZR80/I is a hot-pluggable 10Gbps small form factor transceiver module. It is compliant with the SFF-8431 SFP+ Electrical Multi-source Agreement (MSA) and features five digital monitoring functions: temperature, VCC, transmitted optical power, transmitted laser bias current and received optical power.
SP10T
100/1000/10G-T (RJ-45) SFP+, 20m/100m
100/1000/10G-T (RJ-45), 20m/100m*
* Supports links up to 20m using Cat 6a/7 Cable for 10G and up to 100m for 100/1000T
SP10TW1
SFP+ Twinax direct attach cable, 1m
The AT-SP10TW SFP+ direct attach copper cable assembly is a low-cost alternative for short reach applications. The design allows for a serial data transmission up to 12Gbps in each direction. Additionally, the copper cable acts as a natural heat sink. The low power consumption assists in making the passive copper cable assembly an economic solution for within rack or rackto-rack applications.
The direct attach cable is terminated on both ends with mechanical connectors that plug directly into SFP+ slots in the same manner as SFP+ transceiver modules.
SP10TW3
SFP+ Twinax direct attach cable, 3m
The AT-SP10TW SFP+ direct attach copper cable assembly is a low-cost alternative for short reach applications. The design allows for a serial data transmission up to 12Gbps in each direction. Additionally, the copper cable acts as a natural heat sink. The low power consumption assists in making the passive copper cable assembly an economic solution for within rack or rackto-rack applications.
The direct attach cable is terminated on both ends with mechanical connectors that plug directly into SFP+ slots in the same manner as SFP+ transceiver modules.
SP10TW7
SFP+ Twinax direct attach cable, 7m
The AT-SP10TW SFP+ direct attach copper cable assembly is a low-cost alternative for short reach applications. The design allows for a serial data transmission up to 12Gbps in each direction. Additionally, the copper cable acts as a natural heat sink. The low power consumption assists in making the passive copper cable assembly an economic solution for within rack or rackto-rack applications.
The direct attach cable is terminated on both ends with mechanical connectors that plug directly into SFP+ slots in the same manner as SFP+ transceiver modules.
SP10BD10/I
10G (LC) single-mode SFP, I-Temp, 10 km
The SPBD0/I is available in 1270Tx/1330Rx or 1330Tx/1270Rx I-Temp models (-40°C to 85°C). It offers the latest industry standard in flexible, full-duplex Gigabit Ethernet connectivity. These hot-swappable fiber interfaces simply plug into a SFP slot on compatible products. You can optimize the configuration to meet your distance and service requirements.
SP10BD20
10G (LC) single-mode, 20 km, I-Temp
The SP10BD20 is available in 1270Tx/1330Rx or 1330Tx/1270Rx I-Temp models (0°C to 70°C). It offers the latest industry standard in flexible, full-duplex Gigabit Ethernet connectivity. These hot-swappable fiber interfaces simply plug into a SFP slot on compatible products. You can optimize the configuration to meet your distance and service requirements.
SP10BD40/I
10G (LC) single-mode BiDi, 40 km, I-Temp
The SP10BD40/I is available in 1270Tx/1330Rx or 1330Tx/1270Rx I-Temp models (-40°C to 85°C). It offers the latest industry standard in flexible, full-duplex Gigabit Ethernet connectivity. These hot-swappable fiber interfaces simply plug into a SFP slot on compatible products. You can optimize the configuration to meet your distance and service requirements.
40G & 100G Transceiver Modules
QSFP28 Direct Attach Cables
100G Passive Small Form-Factor DAC
Allied Telesis QSFP28 small form-factor direct attach cables are suitable for in-rack connections between QSFP28 ports, on all QSFP28 compatible products. They are ideal for short distances, and provide cost-effective connectivity within a rack, or in racks within close proximity of each other.
The QSFP28 DACs are available in 1m and 3m lengths.
QSFP28-LR4
100G, QSFP28 LR4, SMF, LC
The Allied Telesis QSFP28 Series offers the latest industry-standard connectivity in a flexible, small form factor. The QSFP28 Series supports 100GbE interconnects. They are ideal for Datacom/Telecom switch and router connections, as well as data aggregation, backplane, proprietary protocol and high-density applications.
QSFP28-SR4
100G, QSFP28 SR4, MMF, MPO-12
The Allied Telesis QSFP28 Series offers the latest industry-standard connectivity in a flexible, small form factor. The QSFP28 Series supports 100GbE interconnects. They are ideal for Datacom/Telecom switch and router connections, as well as data aggregation, backplane, proprietary protocol and high-density applications.
QSFPSR4
40G SR4 (MPO) multi-mode QSFP, 100/150m
The Allied Telesis QSFP Series offers the latest industry-standard connectivity in a flexible, small form factor. These hot-swappable transceiver modules simply plug into any compatible Allied Telesis product.
QSFPSR4LC
40G QSFP SR4, MMF, LC, 100/150m
The Allied Telesis QSFP Series offers the latest industry-standard connectivity in a flexible, small form factor. These hot-swappable transceiver modules simply plug into any compatible Allied Telesis product.
QSFPLR4
40G LR4 (LC) single-mode QSFP, 10km
The Allied Telesis QSFP Series offers the latest industry-standard connectivity in a flexible, small form factor. These hot-swappable transceiver modules simply plug into any compatible Allied Telesis product.
QSFPER4
40G, QSFP, ER4 (40 km), CWDM, LC
The Allied Telesis QSFP Series offers the latest industry-standard connectivity in a flexible, small form factor. These hot-swappable transceiver modules simply plug into any compatible Allied Telesis product.
QSFP+ Direct Attach Cables
40 Gigabit Passive Small Form-Factor DAC
Allied Telesis QSFP small form-factor direct attach cables are suitable for in-rack connections between QSFP+ ports, on all QSFP+-compatible products. They are ideal for short distances, and provide cost-effective connectivity within a rack, or in racks within close proximity of each other.
The QSFP+ DACs are available in 1m and 3m lengths.
QSFP-4SFP10G Breakout Cable
40G QSFP+ port to 4 x 10G ports
Allied Telesis breakout cables allow equipment with one QSFP+ port to connect directly with four 10Gbps SFP+ ports. Ideal for use with Servers, Switches and Adapters, these cables are terminated at one end with a QSFP+ connector, and SFP+ connectors each end of the four breakout cables.
The QSFP-4SFP10G cables are available in 3m and 5m lengths.
